Voltage:220V,50/60Hz,
Power:60W,
Weight:8kg,
Diameter:232X227X183mm,
Packing Size:320X295X255mm.

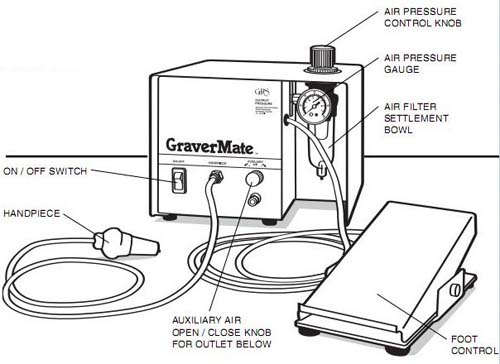

Figure(1)
OPERATION: | ||||||||||
1.Shut down the switch of AIR PRESSURE CONTROL KNOB & AUXILIARY AIR OPEN / CLOSE. | ||||||||||
KNOB FOR OUTLET BELOW to avoid the damage of pressure gauge and reducing valve due to | ||||||||||
strong air pressure. | ||||||||||
2. After connecting all accessories with the machine, turn on the power .(The indicator light is shine ) | ||||||||||
3. Put the ON/OFF Switch to Position (1) or (2). . | ||||||||||
4. Adjust the air pressure and the rotate speed , hold the handpiece like a table knife , step on the | ||||||||||
foot control to max ,adjust AIR PRESSURE CONTROL KNOB slowly to the gauge show | ||||||||||
1.5-2kg/cm² , meanwhile adjust the STROKES PER MINUTE SELECTOR KNOB , in order to make | ||||||||||
the impact of handpiece No.1 reach the maximum., then press the AIRPRESSURE CONTROL | ||||||||||
KNOB. | ||||||||||
5. Loose the foot control , the graver handpieces stop working , intall the graver tools into the handpiece . | ||||||||||
handpiece . | ||||||||||
6. Turn the HANDPIECE SELECTOR KNOB to Switch Handpiece No.1 & No.2 . | ||||||||||
7. When you using Hnadpiece No.2 –rotate handpiece , shut off the power , turn on AUXILIARY AIR | ||||||||||
OPEN / CLOSE.KNOB FOR OUTLET BELOW to adjust AIR PRESSURE CONTROL KNOB. | ||||||||||
8. Step on the foot pedal to control impact. |
